Executive standard
The transformer can convert the voltage of the grid into the voltage required by the system or the load, and realize the transmission and distribution of electric energy. The transformer can replace the transformer of silicon steel sheet iron core and is widely used in outdoor distribution system. The large-scale operation of this product into the network can achieve good energy-saving effect and reduce the pollution to the atmosphere. This product is especially suitable for power shortage and load fluctuations and difficult to carry out daily maintenance areas. Because the transformer adopts a fully sealed structure, insulating oil and insulating media are not polluted by the atmosphere, so it can operate in a humid environment, and is the ideal distribution equipment in the vast distribution network in cities and rural areas.

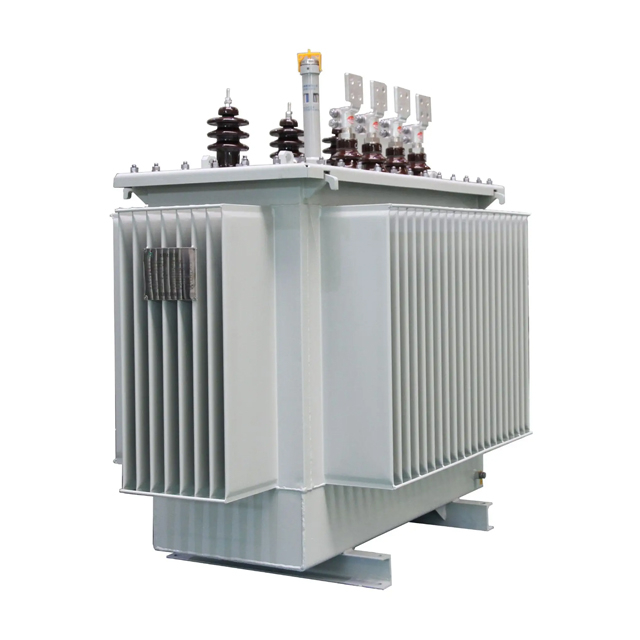

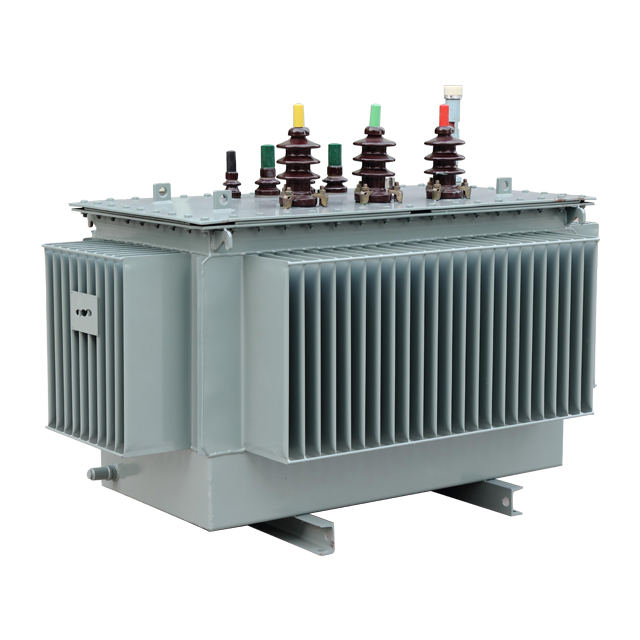

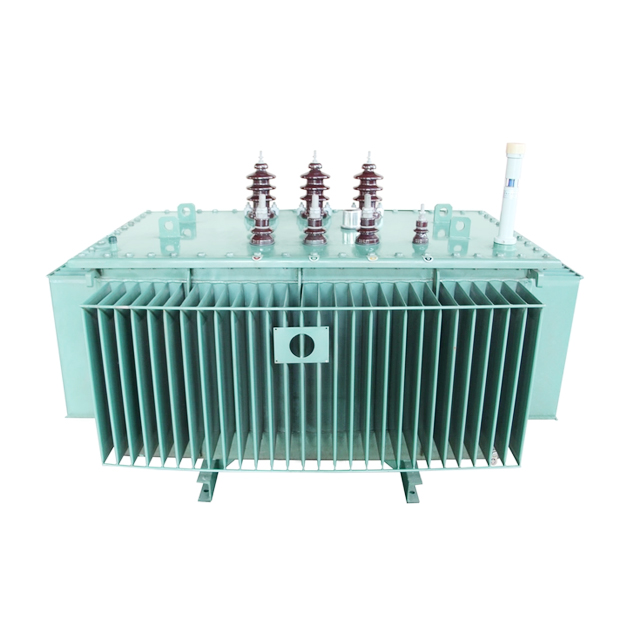

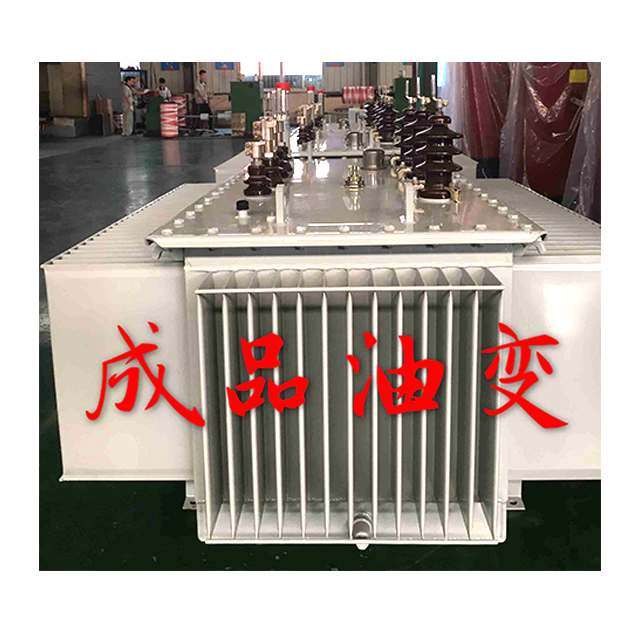

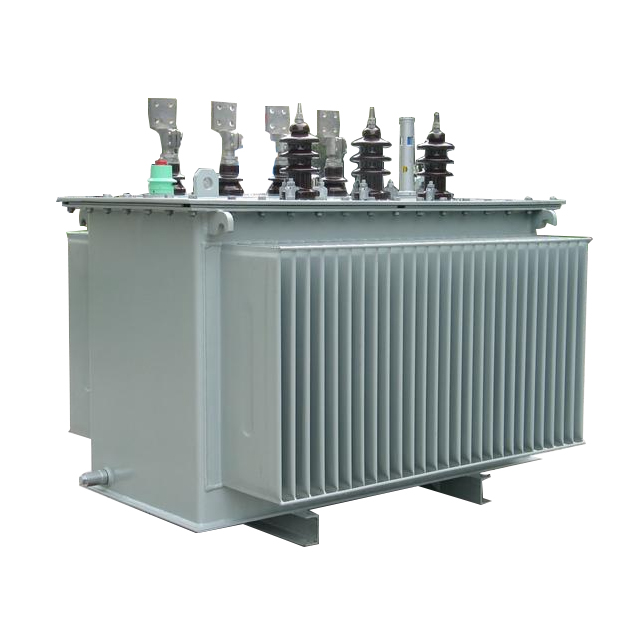

Immersed amorphous alloy core distribution transformers(Features)
Energy-saving products, no-load loss than S9 transformer reduced by about 75%; Low loss, less heat, low temperature rise, stable operation; Advanced and reasonable structure, strong short-circuit resistance; Strong overload capacity, safe and reliable, strong corrosion resistance, maintenance-free.
SBH15-M 6 ~ 1 0kV、20kV Oil immersed amorphous alloy distribution transformer
Rated capacity (kVA) | Voltage combination | Join group label | No-load loss（W) | Load loss (W) | No-load current (%) | Short circuit impedance (%) | ||
high pressure (kV) | High pressure tap range(%) | Low pressure (kv) | ||||||
30 | 6 6.3 6.6 10 10.5 11 | ±5%±2×2.5% | 0.4 | Dyn11YynO | 33 | 630/600 | 1.70 | 4.0 |
50 | 43 | 910/870 | 1.30 | 4.0 | ||||
63 | 50 | 1090/1040 | 1.20 | 4.0 | ||||
80 | 60 | 1310/1250 | 1.10 | 4.0 | ||||
100 | 75 | 1580/1500 | 1.00 | 4.0 | ||||
125 | 85 | 1890/1800 | 0.90 | 4.0 | ||||
160 | 100 | 2310/2200 | 0.70 | 4.0 | ||||
200 | 120 | 2730/2600 | 0.70 | 4.0 | ||||
250 | 40 | 3200/3050 | 0.70 | 4.0 | ||||
315 | 170 | 3830/3650 | 0.50 | 4.0 | ||||
400 | 200 | 4520/4300 | 0.50 | 4.0 | ||||
500 | 240 | 5410/5150 | 0.50 | 4.0 | ||||
630 | 320 | 6200 | 0.30 | 4.5 | ||||
800 | 380 | 7500 | 0.30 | 4.5 | ||||
1000 | 450 | 10300 | 0.20 | 4.5 | ||||
1250 | 530 | 12000 | 0.20 | 4.5 | ||||
1600 | 630 | 14500 | 0.20 | 4.5 | ||||
2000 | 750 | 17400 | 0.20 | 5.0 | ||||
2500 | 900 | 20200 | 0.20 | 5.0 | ||||
Note: When the arch core is three-phase three-column, W110 coupling group can also be used according to the need.
SBH15-M 6 ~ 1 0kV、20kV Oil immersed amorphous alloy distribution transformer
Rated capacity (kVA) | Voltage combination | Join group label | No-load loss（W) | Load loss (W) | No-load Current (%) | chort cir cuit impedance (%) | ||
high pressure (kV) | High pressure tap range(%) | Low pressure (kV) | ||||||
30 | 24 22 20 | ±5%±2×2.5% | 0.4 | Dyn11Yyn0 | 40 | 690/660 | 1.50 | 5.5 |
50 | 55 | 1010/960 | 1.20 | 5.5 | ||||
63 | 65 | 200/1150 | 1.10 | 5.5 | ||||
80 | 75 | 1440/1370 | 1.00 | 5.5 | ||||
100 | 90 | 1730/1650 | 0.90 | 5.5 | ||||
125 | 100 | 2080/1980 | 0.80 | 5.5 | ||||
160 | 120 | 2540/2420 | 0.60 | 5.5 | ||||
200 | 145 | 3000/2860 | 0.60 | 5.5 | ||||
250 | 165 | 3520/3350 | 0.60 | 5.5 | ||||
315 | 200 | 4210/4010 | 0.50 | 5.5 | ||||
400 | 240 | 4970/4730 | 0.50 | 5.5 | ||||
500 | 290 | 5940/5660 | 0.50 | 5.5 | ||||
630 | 370 | 6820 | 0.30 | 6.0 | ||||
800 | 450 | 8250 | 0.30 | 6.0 | ||||
1000 | 530 | 11330 | 0.30 | 6.0 | ||||
1250 | 620 | 13200 | 0.20 | 6.0 | ||||
1600 | 750 | 15950 | 0.20 | 6.0 | ||||
2000 | 900 | 19140 | 0.20 | 6.0 | ||||
2500 | 1080 | 22220 | 0.20 | 6.0 | ||||
Note 1: When the arch core is three-phase three-column, the Yyn0 connection group can also be used according to the need.
Note 2: For transformers with a rated capacity of 500KV and below, the load loss values above the slash line in the table apply to the Dyn11 link group, and the load loss values below the slash line apply to the Yyn0 link group.
Note 3: If the user needs, other loss values can be selected.
Note 4: Transformers with other high pressure tap ranges are available according to user requirements.
