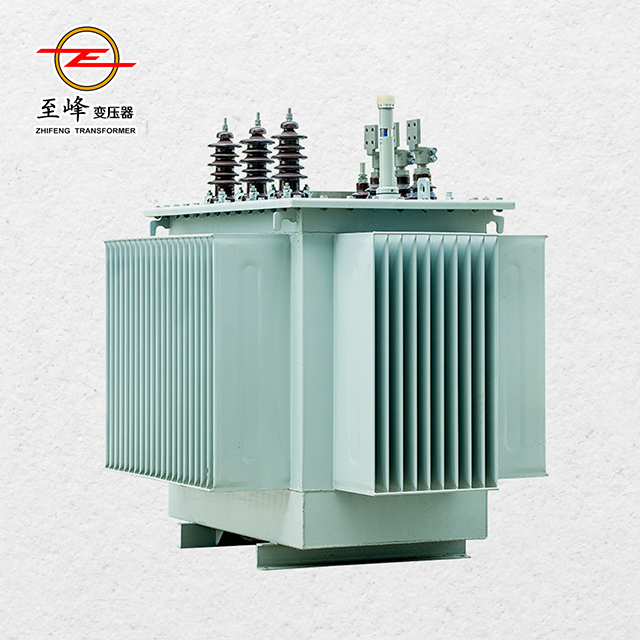

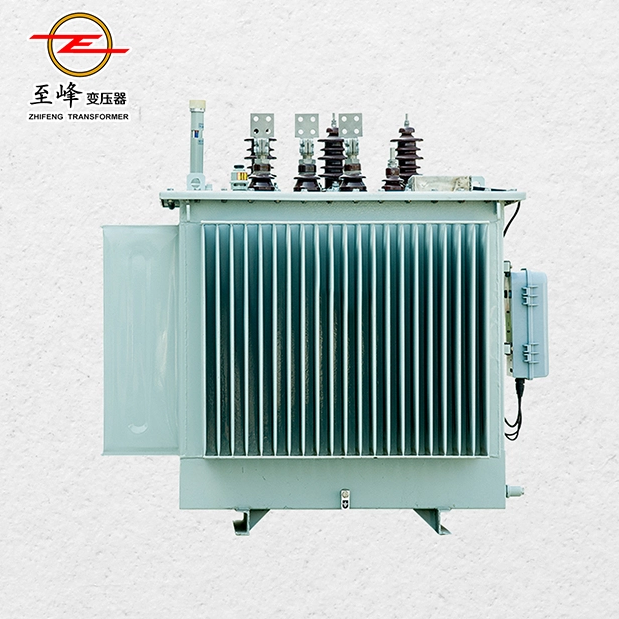

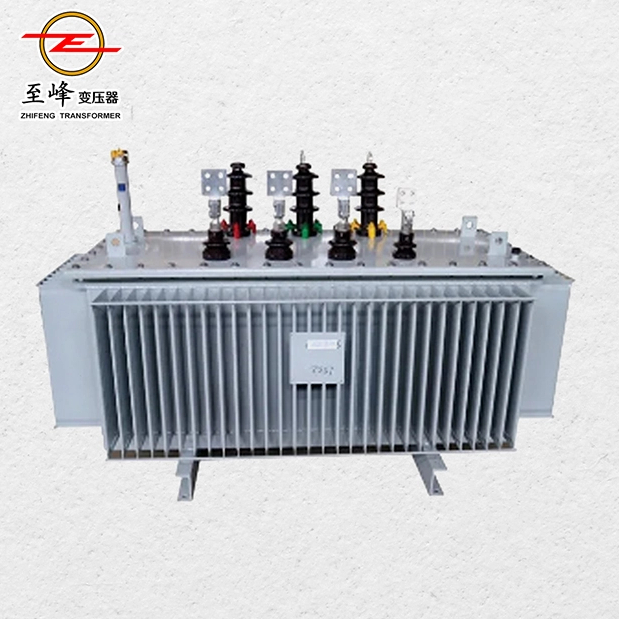

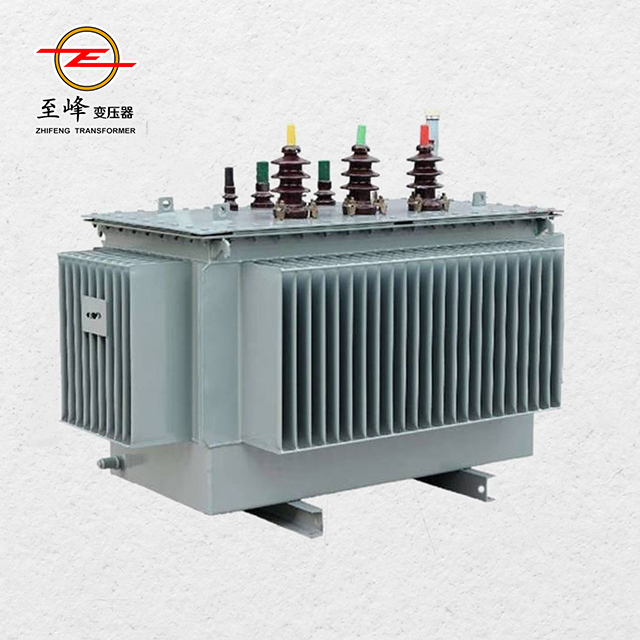

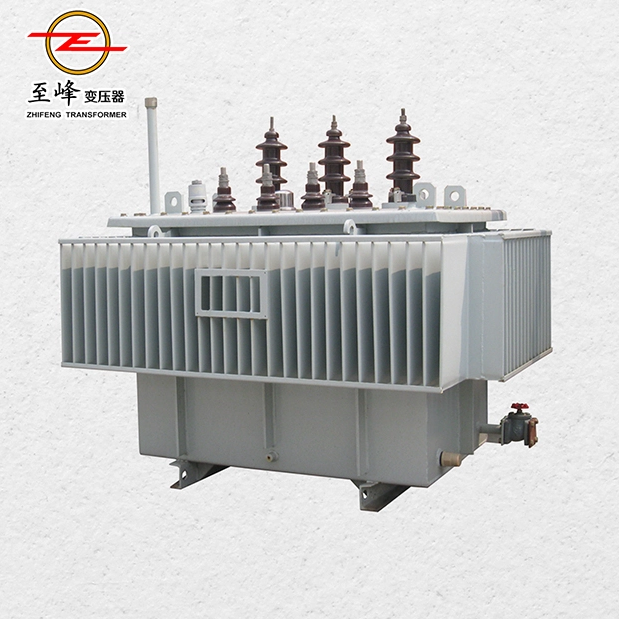

SBH15-M 10kV Oil-immersed amorphous alloy transformers
zftransformer
Immersed amorphous alloy core distribution transformers(Features)
Energy Saving,No-load Loss Is 75%Less Than S9 Series;
Low Loss,Low Noise,Low Temperature Rise,Steady Work;
Advanced Structure,High Anti Short Circuit;
High Overload Ability,Safe And Reliable,High Resistant To Corrosion,Free Maintenance,

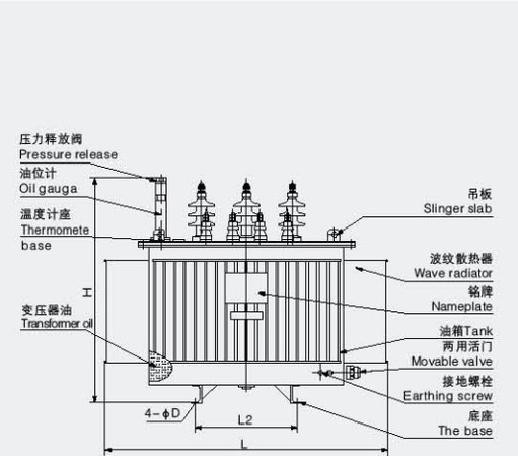

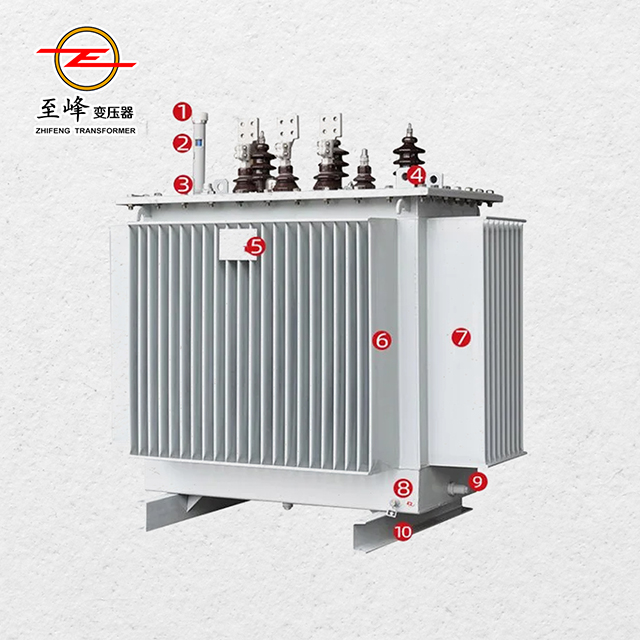

产品外形图 Product outline drawing
10kV油浸式非晶合金铁芯配电变压器(通过短路试验)
Immersed amorphous alloy core distribution transformers(Pass the short-circiut test)
Because the amorphous alloy iron core cannot withstand the action of mechanical force,and the mechanical strength of the rectangular coil is weak,the short-circuit test of the amorphous alloy transformer has become a technical problem in the field of transformers.The company has successfully overcome this difficulty with mature technical experience,and designed and developed the SBH15-M-2500/10 distribution transformer by itself.Passed the short- circuit test at the Shenyang National Transformer Quality Supervision and Inspection Center in one fell swoop,which marks that the company's amorphous alloy transformer design and manufacturing technology is at an advanced level.
10KV油浸式非晶合金铁芯配电变压器(产品绝缘水平)
Immersed amorphous alloy core distribution transformers(Insulation level)
电压等级 Voltage evel(kV) | 设备最高电压有效值 Highest electrical equipment RMS voltage(kV) | 额定短时工频耐受电压有效值 Rated frequency withstand voltage rms (kV/min) | 额定雷电冲击耐受电压全波峰值 Rated lightning impulse withstand voltage ful wave peak(kV)' |
≤1 | ≤1 | 5 | -- |
6 | 6.9 | 25 | 75 |
10 | 11.5 | 35 | 95 |
SBH15-M 型 6 ~ 10kV油浸式非晶合金铁芯配电变压器
SBH15-M 型 6 ~ 10kV Oil immersed amorphous alloy distribution transformer
额定容量 Rated capacit (kVA) | 电压组合 Voltage combination | 联结组标号 Vector Group Symbol | 空载损耗 No-load loss (W) | 负载损耗 Load loss (W) | 空载电流 No-load current (%) | 短路阻抗 Short circuit impedance (%) | ||
高压 high pressure (kV) | 高压分接范围 High pressure tap range(%) | 低压 Low pressure (kv) | ||||||
30 | 6 6.3 6.6 10 10.5 11 | ±5% ±2×2.5% | 0.4 | Dyn11 Yyn0 | 33 | 630/600 | 1.70 | 4.0 |
50 | 43 | 910/870 | 1.30 | 4.0 | ||||
63 | 50 | 1090/1040 | 1.20 | 4.0 | ||||
80 | 60 | 1310/1250 | 1.10 | 4.0 | ||||
100 | 75 | 1580/1500 | 1.00 | 4.0 | ||||
125 | 85 | 1890/1800 | 0.90 | 4.0 | ||||
160 | 100 | 2310/2200 | 0.70 | 4.0 | ||||
200 | 120 | 2730/2600 | 0.70 | 4.0 | ||||
250 | 40 | 3200/3050 | 0.70 | 4.0 | ||||
315 | 170 | 3830/3650 | 0.50 | 4.0 | ||||
400 | 200 | 4520/4300 | 0.50 | 4.0 | ||||
500 | 240 | 5410/5150 | 0.50 | 4.0 | ||||
630 | 320 | 6200 | 0.30 | 4.5 | ||||
800 | 380 | 7500 | 0.30 | 4.5 | ||||
1000 | 450 | 10300 | 0.20 | 4.5 | ||||
1250 | 530 | 12000 | 0.20 | 4.5 | ||||
1600 | 630 | 14500 | 0.20 | 4.5 | ||||
2000 | 750 | 17400 | 0.20 | 5.0 | ||||
2500 | 900 | 20200 | 0.20 | 5.0 | ||||
注：当拱芯为三相三柱时，根据需要也可需采用Yy110联结组。
Note:If the core is 3-pole,vector group Yyn0 can be used according to requirements.
Shandong Zhifeng Transformer Co.,Ltd.is located in Rainbow Industrial Park,North Head,East Second Ring Road,Linqing City,Shandong Province,a famous canal city,with convenient transportation and beautful environment.The company occupies an area of 45,000 square meters.It is a collection of 35KV and below oil-immersed transformers, box-type transformers,special transformers,grounding transformers,arc suppression coils,reactors,box-type substations,American box-type transformers,and various types of box production. A professional power equipment manufacturer integrating sales and R&D.
The company strictly manages in accordance with the operating standards of the ISI9001 quality system.Using computer-aided integrated design technology.Combining the characteristics of the local nvironment to design professional products that meet the needs of customers,to ensure the high quality of the products.The company has : comprehensive performance test bench, high-performance withstand voltage equipment,program-controlled frequency conversion power supply,insulating oil gas chromatograph,acid value tester, insulating oil dielectric strength tester,oil dielectric loss tester and other advanced inspection and testing equipment.Use vacuum drying equipment,digital winding machine,laser cutting line and other superior production equipment.The products have advanced technology and complete testing equipment.There are more than 100 employees, including 5 senior engineers and 18 intermediate and senior technical personnel.
Shandong Zhifeng Transformer Co.,Ltd.adheres to the concept of "sincerity and trust,bravely climbing peaks",with customer satisfaction as its service tenet,it is commited to providing high-quality,safe, energy-saving,and environmentally friendly power products for global power users.
The transformers produced by the company have outstanding quality, excellent prices and excellentafter-sales service.We will strive for perfection,create more excellent products,and look forward to sincere cooperation with new and old customers.
Quality-oriented,honest management,and the subtle combination of technology and equipment have created a solid foundation for quality.With a stable team of employees,sophisticated production management,and standardized operating procedures,Zhifeng has achieved high-efficiency and stable production.Zhifeng has formulated a complete quality management process,and strictly monitors all links to ensure the stable and controllable product quality.Zhifeng is commited to being an industry model at the advanced level of the industry.
Stict monitoring is the guarantee of product qualty.Iit is our tenet not tolet any flaw appear,not to let thequalty problem damage our brand.We have established a set of reasonable and orderly monitoring procedures.Guided by the idea of we pursue zero failure",we will never let a substandard product leave the factory.
We believe that this is not only responsible for cur customers,but also responsible for ourselves.
Our unremitting efforts
Be your first choice!
