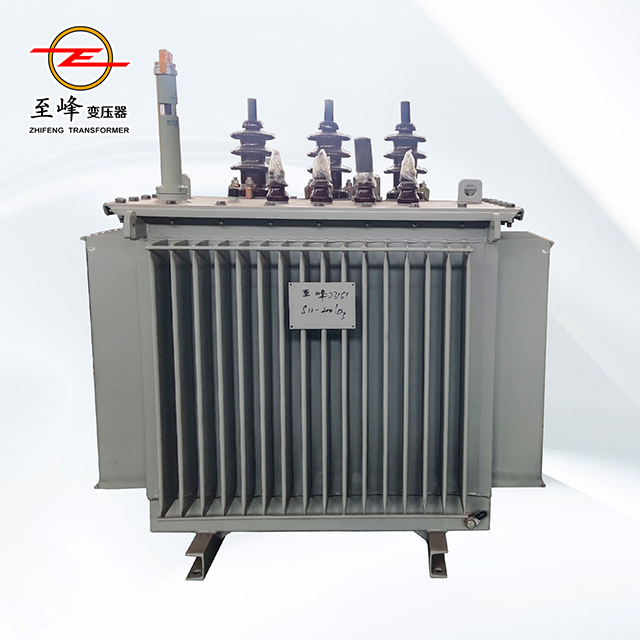

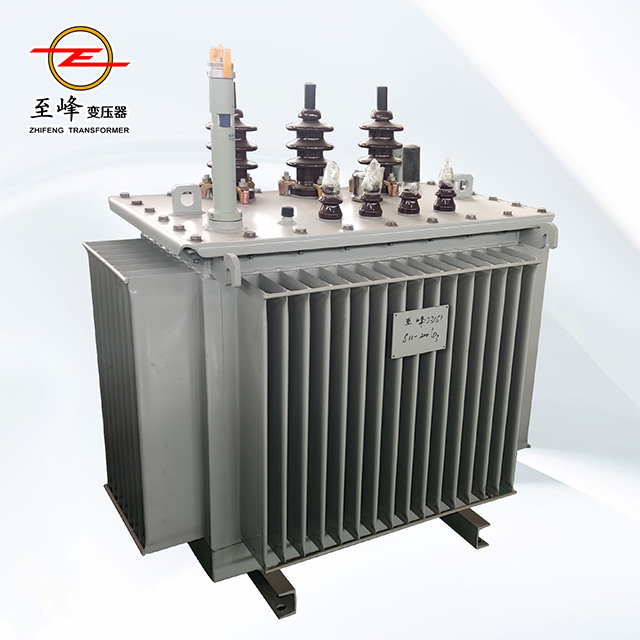

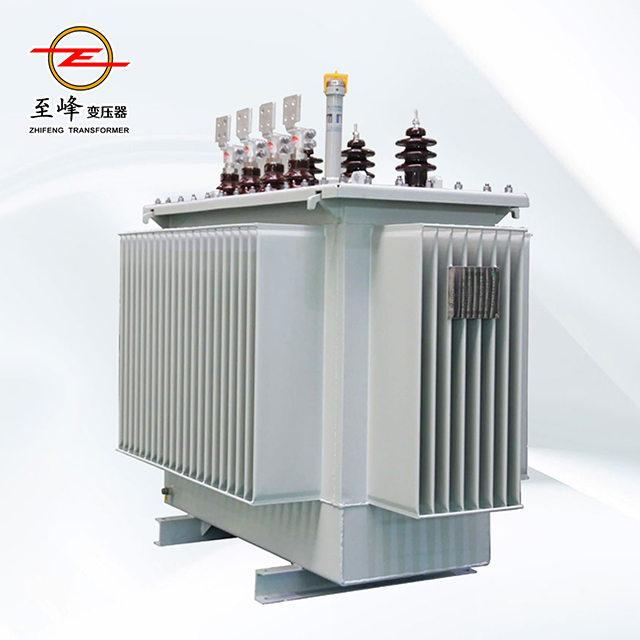

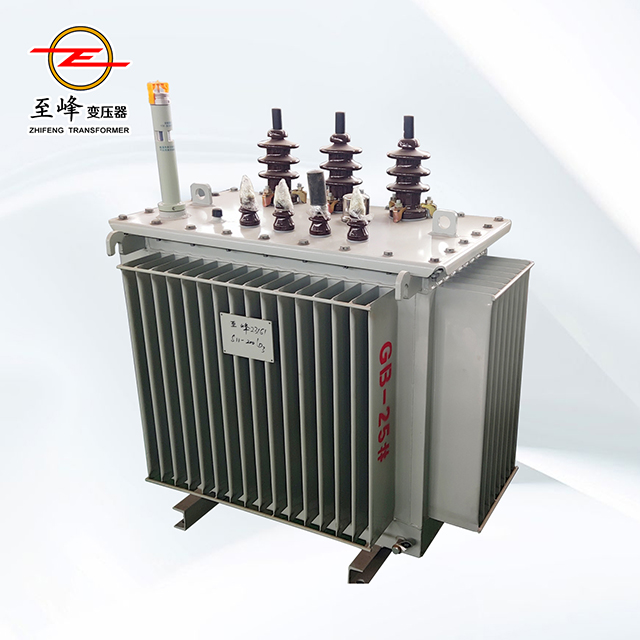

S11 10kV transformers
zftransformer
Characteristics of the product
Core is made of the new core,miter joints convolution type iron core,its legs of circular crosssection multi-step,the yoke and the core of constant section.
●winding
Transformer vacuum oiling process at the time of packaging,completely removes moisture transformers,transformer oil is not in contact with air.Effectively prevent oxygen and moisture intrusion caused by
transformer insulation transformers and transformer oil aging performan ce possible,so from time to time oil sample test.
S11-M 型6~10kV 油浸式配电变压器
Oil-immersed distribution transformers
额定容量 Rated capacdity (kVA) | 电压组合及分接范围 Voltage combinationand tap range | 联结组标号 Vector group symbol | 空载损耗 Non-load loss (W) | 负载损耗 Load loss (W) | 空载电流 No-load current (%) | 短路阻抗 Short arauit mpedance (% | ||
高压 High pressure (kV) | 高压分接范围 High pressure tap range (%) | 低压 Low pressure (kV) | ||||||
30 | 11 10.5 10 6.3 6 | ±5 ±2×2.5% |
0.4 0.69 | Yyn0 Dyn11 | 100 | 630/600 | 2.3 | 4 |
50 | 130 | 910/870 | 2.0 | 4 | ||||
63 | 150 | 1090/1040 | 1.9 | 4 | ||||
80 | 180 | 1310/1250 | 1.9 | 4 | ||||
100 | 200 | 1580/1500 | 1.8 | 4 | ||||
125 | 240 | 1890/1800 | 1.7 | 4 | ||||
160 | 280 | 2310/2200 | 1.6 | 4 | ||||
200 | 340 | 2730/2600 | 1.5 | 4 | ||||
250 | 400 | 3200/3050 | 1.4 | 4 | ||||
315 | 480 | 3830/3650 | 1.4 | 4 | ||||
400 | 570 | 4520/4300 | 1.3 | 4 | ||||
500 | 680 | 5410/5150 | 1.2 | 4 | ||||
630 | 810 | 6200 | 1.1 | 4.5 | ||||
800 | 960 | 7500 | 1.0 | 4.5 | ||||
1000 | 1150 | 10300 | 1.0 | 4.5 | ||||
1250 | 1360 | 12000 | 0.9 | 4.5 | ||||
1600 | 1640 | 14500 | 0.8 | 4.5 | ||||
2000 | 1960 | 19800 | 0.8 | 5 | ||||
2500 | 2310 | 23000 | 0.7 | 5 | ||||
Note:
1.slash the top of table load loss applicable to Dyn11 join groups,load loss slash Yyn0 below values apply to join the group.
2.other capacity product performance parameters,determined by the user in corsultation with the manufacturer.

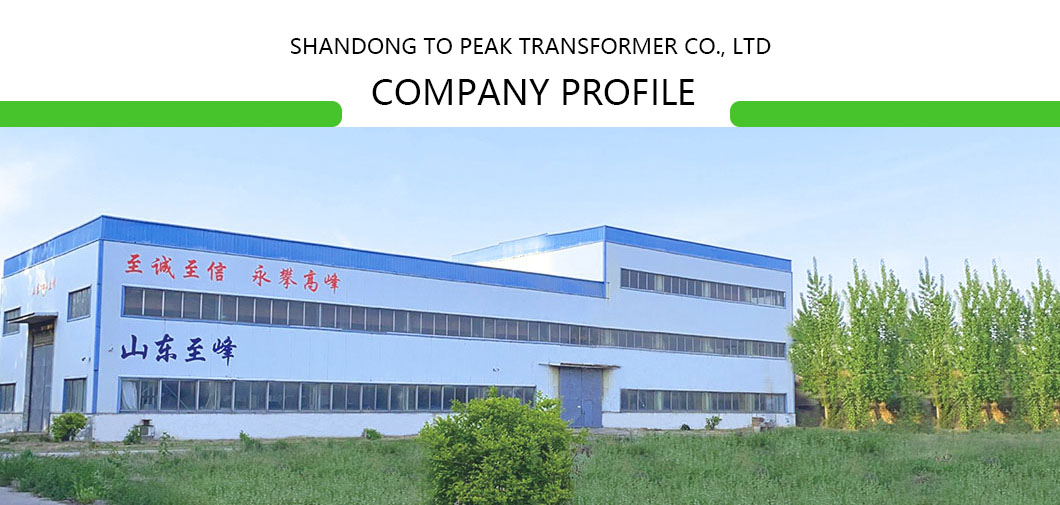

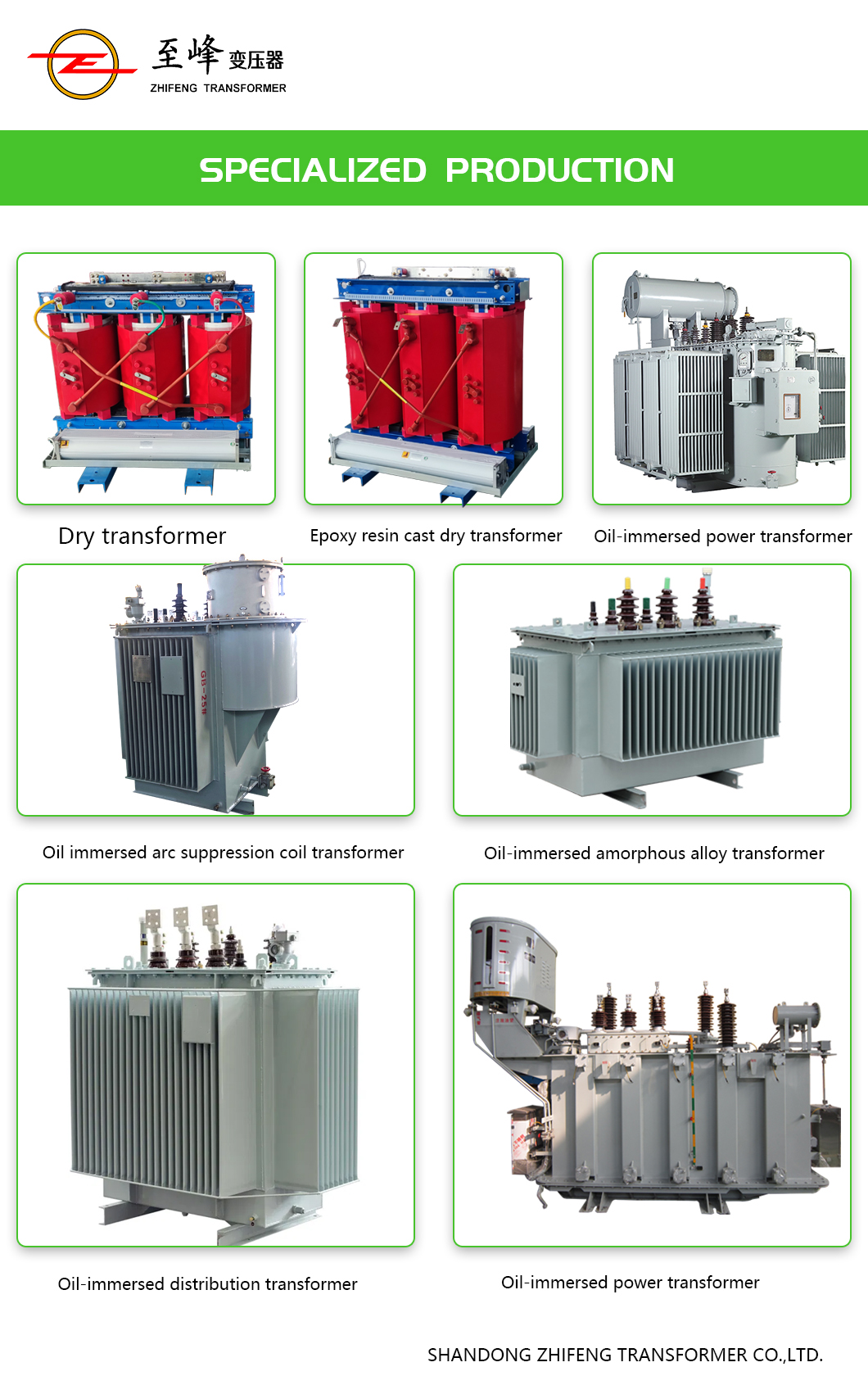

Shandong Zhifeng Transformer Co.,Ltd.is located in Rainbow Industrial Park,North Head,East Second Ring Road,Linqing City,Shandong Province,a famous canal city,with convenient transportation and beautful environment.The company occupies an area of 45,000 square meters.It is a collection of 35KV and below oil-immersed transformers, box-type transformers,special transformers,grounding transformers,arc suppression coils,reactors,box-type substations,American box-type transformers,and various types of box production. A professional power equipment manufacturer integrating sales and R&D.

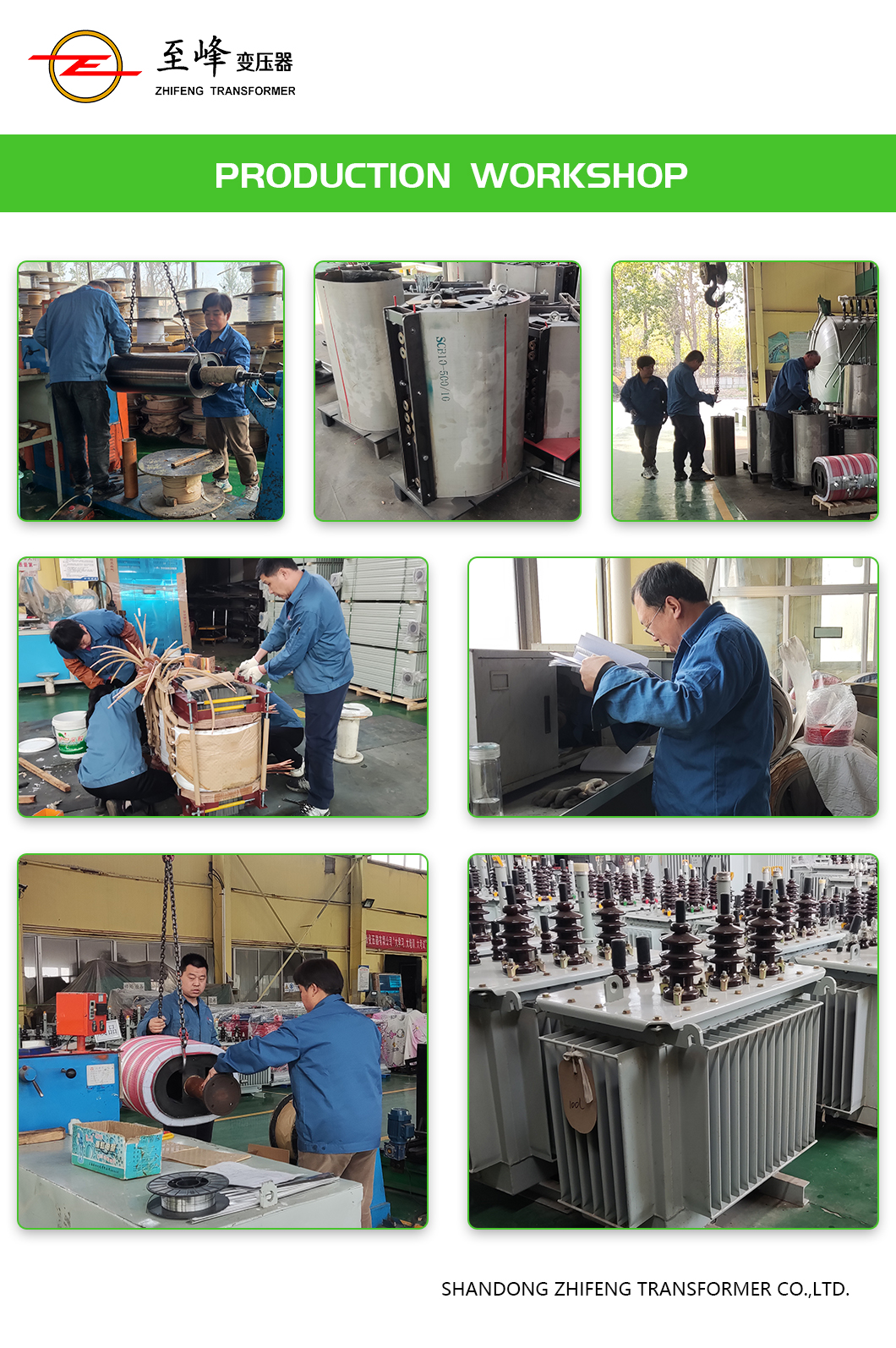

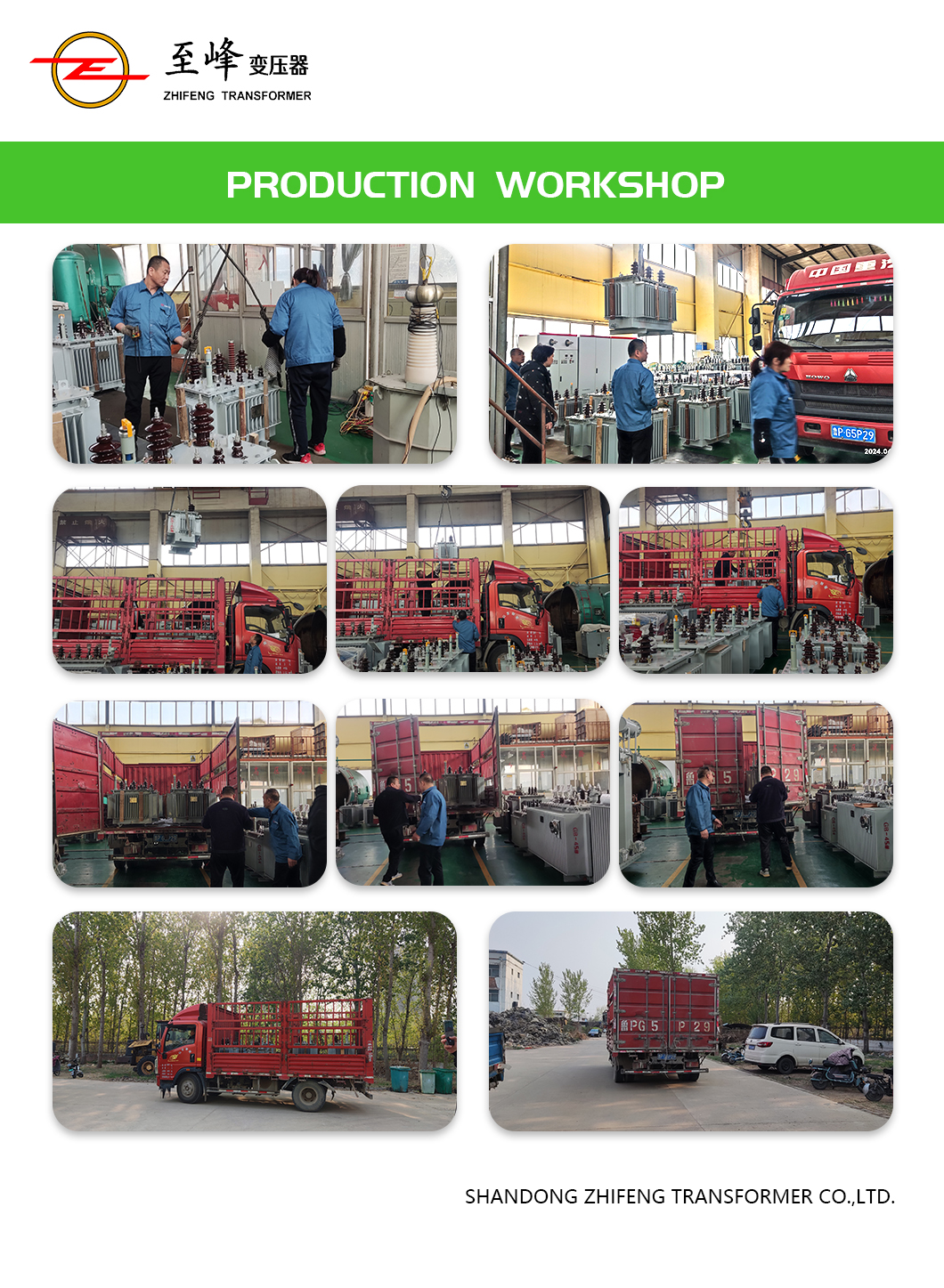

The company strictly manages in accordance with the operating standards of the ISI9001 quality system.Using computer-aided integrated design technology.Combining the characteristics of the local nvironment to design professional products that meet the needs of customers,to ensure the high quality of the products.The company has : comprehensive performance test bench, high-performance withstand voltage equipment,program-controlled frequency conversion power supply,insulating oil gas chromatograph,acid value tester, insulating oil dielectric strength tester,oil dielectric loss tester and other advanced inspection and testing equipment.Use vacuum drying equipment,digital winding machine,laser cutting line and other superior production equipment.The products have advanced technology and complete testing equipment.There are more than 100 employees, including 5 senior engineers and 18 intermediate and senior technical personnel.
Shandong Zhifeng Transformer Co.,Ltd.adheres to the concept of "sincerity and trust,bravely climbing peaks",with customer satisfaction as its service tenet,it is commited to providing high-quality,safe, energy-saving,and environmentally friendly power products for global power users.
The transformers produced by the company have outstanding quality, excellent prices and excellentafter-sales service.We will strive for perfection,create more excellent products,and look forward to sincere cooperation with new and old customers.
Quality-oriented,honest management,and the subtle combination of technology and equipment have created a solid foundation for quality.With a stable team of employees,sophisticated production management,and standardized operating procedures,Zhifeng has achieved high-efficiency and stable production.Zhifeng has formulated a complete quality management process,and strictly monitors all links to ensure the stable and controllable product quality.Zhifeng is commited to being an industry model at the advanced level of the industry.
Stict monitoring is the guarantee of product qualty.Iit is our tenet not tolet any flaw appear,not to let thequalty problem damage our brand.We have established a set of reasonable and orderly monitoring procedures.Guided by the idea of we pursue zero failure",we will never let a substandard product leave the factory.
We believe that this is not only responsible for cur customers,but also responsible for ourselves.
Our unremitting efforts
Be your first choice!
