SBH15-M 20kV Oil-immersed amorphous alloy transformers
zftransformer
Immersed amorphous alloy core distribution transformers(Features)
Energy Saving,No-load Loss Is 75%Less Than S9 Series;
Low Loss,Low Noise,Low Temperature Rise,Steady Work;
Advanced Structure,High Anti Short Circuit;
High Overload Ability,Safe And Reliable,High Resistant To Corrosion,Free Maintenance,

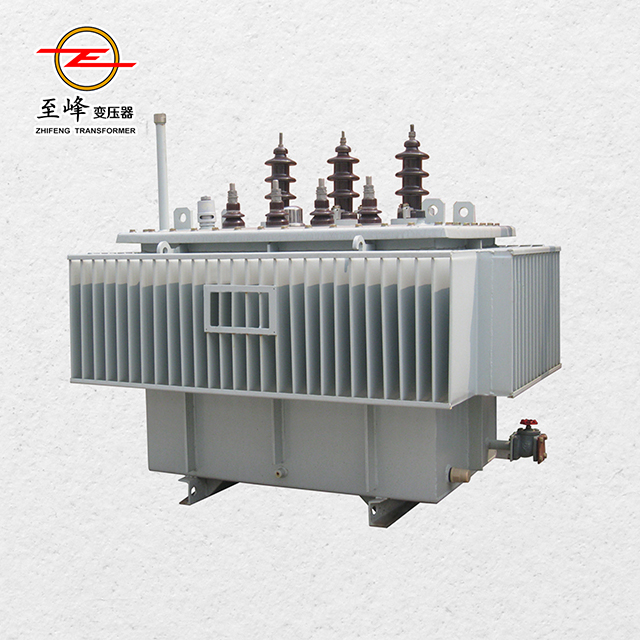

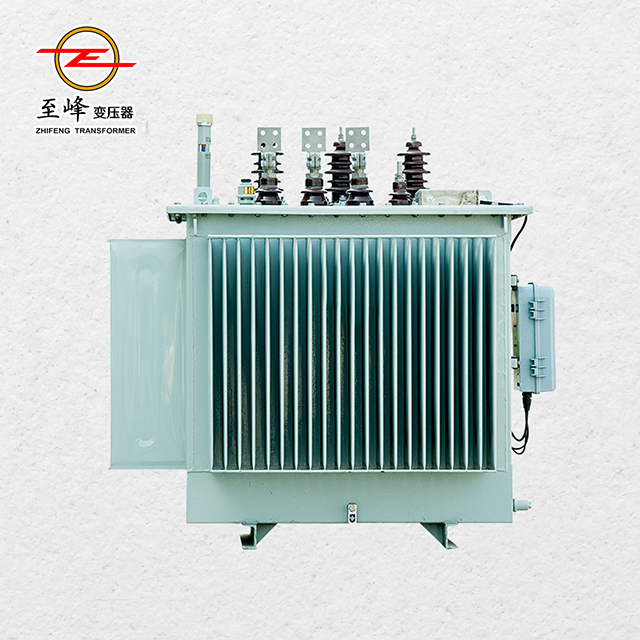

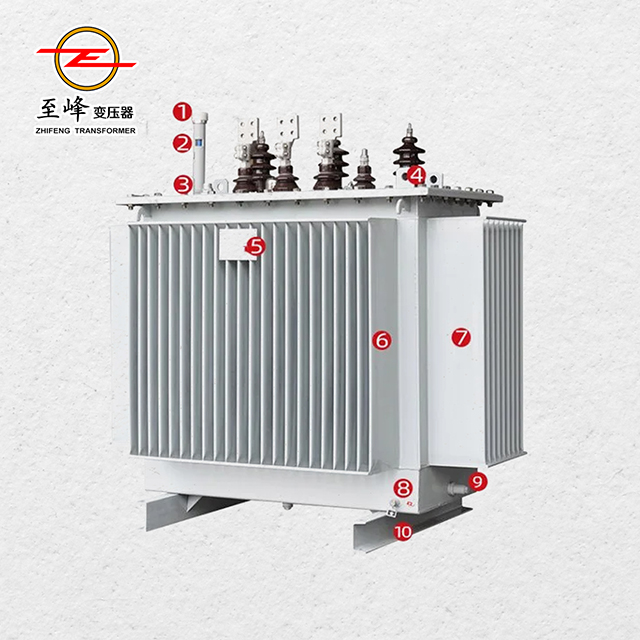

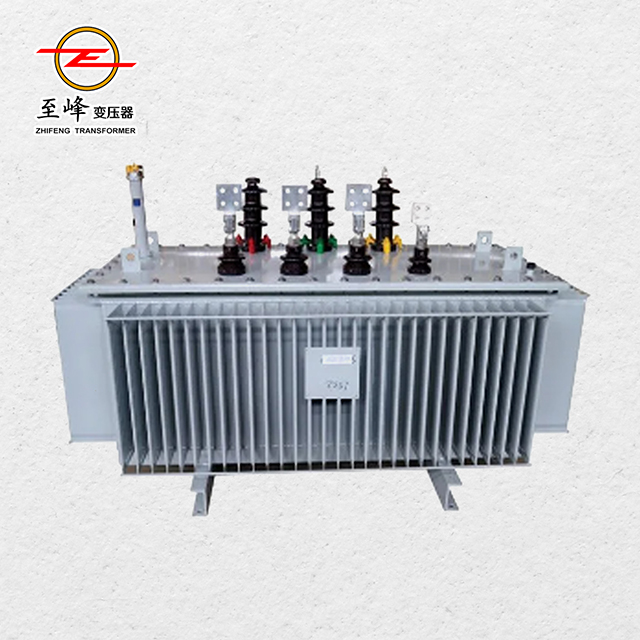

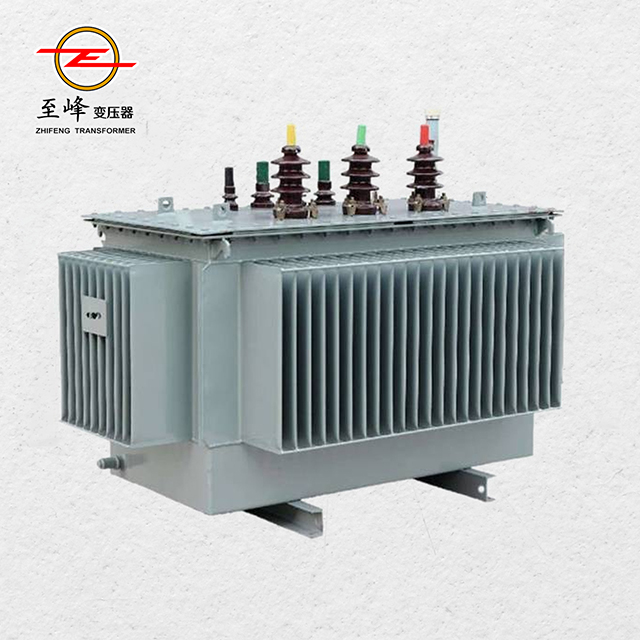

产品外形图 Product outline drawing
20kV油浸式非晶合金铁芯配电变压器(通过短路试验)
Immersed amorphous alloy core distribution transformers(Pass the short-circiut test)
Because the amorphous alloy iron core cannot withstand the action of mechanical force,and the mechanical strength of the rectangular coil is weak,the short-circuit test of the amorphous alloy transformer has become a technical problem in the field of transformers.The company has successfully overcome this difficulty with mature technical experience,and designed and developed the SBH15-M-2500/10 distribution transformer by itself.Passed the short-circuit test at the Shenyang National Transformer Quality Supervision and Inspection Center in one fell swoop,which marks that the company's amorphous alloy transformer design and manufacturing technology is at an advanced level.
20kV 油浸式非晶合金铁芯配电变压器(产品绝缘水平)
Immersed amorphous alloy core distribution transformers(Insulation level)
电压等级 Voltage evel(kV) | 设备最高电压有效值 Highest electrical equipment RMS voltage(kV) | 额定短时工频耐受电压有效值 Rated frequency withstand voltage rms (kV/min) | 额定雷电冲击耐受电压全波峰值 Rated lightning impulse withstand voltage ful wave peak(kV)' |
20 | 23 | 55 | 125 |
SBH15-M 型20kV 油浸式非晶合金铁芯配电变压器
SBH15-M 型20kV Oil immersed amorphous alloy distribution transformer
额定容量 Rated capacity (kVA) | 电压组合 Voltage combination | 联结组标号 Vector Group Symbol | 空载损耗 No-load loss (W) | 负载损耗 Load loss (W) | 空载电流 No-load current (%) | 短路阻抗 chort cir cuit impedance (%) | ||
高压 high pressure (kV | 高压分接范围 High pressure tap range (%) | 低压 Low pressure (KV) | ||||||
30 | 24 22 20 | ±5% ±2×2.5% | 0.4 | Dyn11 Yyn0 | 40 | 690/660 | 1.50 | 5.5 |
50 | 55 | 1010/960 | 1.20 | 5.5 | ||||
63 | 65 | 200/1150 | 1.10 | 5.5 | ||||
80 | 75 | 1440/1370 | 1.00 | 5.5 | ||||
100 | 90 | 1730/1650 | 0.90 | 5.5 | ||||
125 | 100 | 2080/1980 | 0.80 | 5.5 | ||||
160 | 120 | 2540/2420 | 0.60 | 5.5 | ||||
200 | 145 | 3000/2860 | 0.60 | 5.5 | ||||
250 | 165 | 3520/3350 | 0.60 | 5.5 | ||||
315 | 200 | 4210/4010 | 0.50 | 5.5 | ||||
400 | 240 | 4970/4730 | 0.50 | 5.5 | ||||
500 | 290 | 5940/5660 | 0.50 | 5.5 | ||||
630 | 370 | 6820 | 0.30 | 6.0 | ||||
800 | 450 | 8250 | 0.30 | 6.0 | ||||
1000 | 530 | 11330 | 0.30 | 6.0 | ||||
1250 | 620 | 13200 | 0.20 | 6.0 | ||||
1600 | 750 | 15950 | 0.20 | 6.0 | ||||
2000 | 900 | 19140 | 0.20 | 6.0 | ||||
2500 | 1080 | 22220 | 0.20 | 6.0 | ||||
注1:当铁芯为三相三柱时，根据需要也可采用Yyn0联结组。
注2:对于额定容量为500kV 及以下的变压器，表中斜线上方的负载损耗值适用于Dyn11 联结组，斜线下方的负载损耗值适用于Yyn0 链接组。
注3:如果用户需要，也可选用其它损耗值。
注4:根据用户需要，可提供其它高压分接范围的变压器。
Note1:if the core is 3-phase 3-polel vector group Yyn0 can be used according to requirements.
Note2:rated capacity 500KVA and below transformer,the load loss above the oblique line in the table applies to Dyn11 or Yzn11;the load loss below thw oblique line applies to Yyn0
Note3:according to requirements,other loss values can be provided.
Note4:according to requirements,other tap change can be provided.
