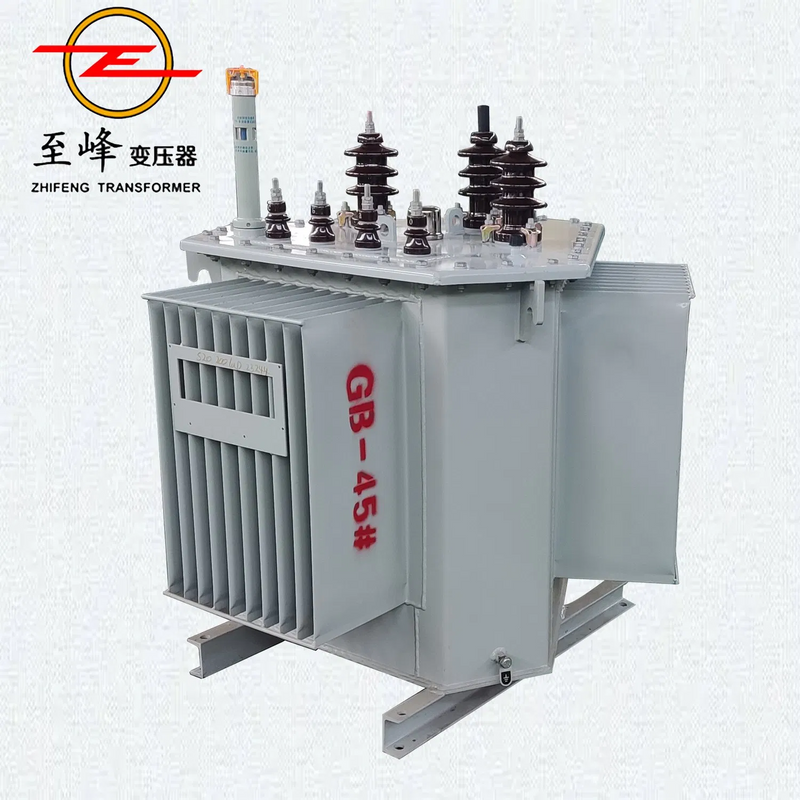

Durable Oil Immersed Transformer with Triangular Iron Core

Product introduction

The series of products in the design is more advanced, in the material, structure and process has been greatly improved and improved. The high and low pressure clamps are tightened with copper draw bands or upper and side beams to form a strong frame structure, which enhances the clamping force of the iron core and the ability to withstand transportation impact. Strong short-circuit resistance, beautiful appearance selection, reliable operation, low loss, low noise, to the advanced level of similar foreign products.

Quantity:
Availability:





Inquire Add to Basket

Product Description

630kva Three-phase Compact Oil Immersed Distribution Transformer Power Transformer Price

Introducing our high-quality 630kva three-phase compact oil immersed distribution transformer, designed for efficient power transmission. This transformer is perfect for industrial and commercial applications, providing reliable and stable electricity supply. Fabricated in China, this transformer is built to meet international standards and ensure long-lasting performance.

Key Features:

High Voltage Transformer

3 Phase Transformer

Oil Type Transformer

Amorphous Core for Energy Efficiency

Compact Design for Space-saving Installation

Whether you need a distribution transformer for your factory, plant, or facility, our 630kva three-phase transformer is the ideal choice. Purchase now at a competitive price and experience the difference in power transmission efficiency!

Product Characteristics
Iron Core
Our transformers feature an iron core made from cold-rolled silicon copper sheets with high magnetic permeability. This new type of core employs a full oblique joint stacking method, with the core column exhibiting a multi-step circular section, and consistent sections for both the iron yoke and the core itself.

Winding
The winding process incorporates corrugated oil channels and a no-paint dipping technique, ensuring tight tape binding. The concentric coils of the winding include a high voltage winding with essential tap connections, leading to the tap-changer. The switch, mounted on the box cover, allows for voltage adjustments prior to tapping.

Safety Protection Device
Our transformers, ranging from 30 to 2000kVA, come equipped with pressure relief valves to ensure safety.
Additionally, gas relays with alarm and tripping terminals are available upon user request, enhancing the protective measures.

Product Specification

Rated capacity (kVA)	Voltage combination			Join group label	No-load loss(W)	Load loss (W)	No-load current (%)	Short circuit impedance (%)
	high pressure (kV)	High pressure tap range(%)	Low pressure (kV)
30	6 6.3 6.6 10 10.5 11	±5±2×2.5%	0.4	Dyn11 Yzn11 Yyn0	80	630/600	1.8	4
50					100	910/870	1.6	4
63					110	1090/1040	1.6	4
80					130	1310/1250	1.5	4
100					150	1580/1500	1.4	4
125					170	1890/1800	1.4	4
160					200	2310/2200	1.3	4
200					240	2730/2600	1.2	4
250					290	3200/3050	1.2	4
315					340	3830/3650	1.1	4
400					410	4520/4300	1.1	4
500					480	5410/5150	1.0	4
630					570	6200	0.9	4.5
800				Dyn11 Yyn0	700	7500	0.8	4.5
1000					830	10300	0.8	4.5
1250					970	12000	0.7	4.5
1600					1170	14500	0.6	4.5

Note: 1. Load loss values above the slash line in the table apply to the Dynl1 connection group, while those below the line pertain to the Yyn0 connection group.
2. Performance parameters for other capacities can be customized as per user and manufacturer agreements.
