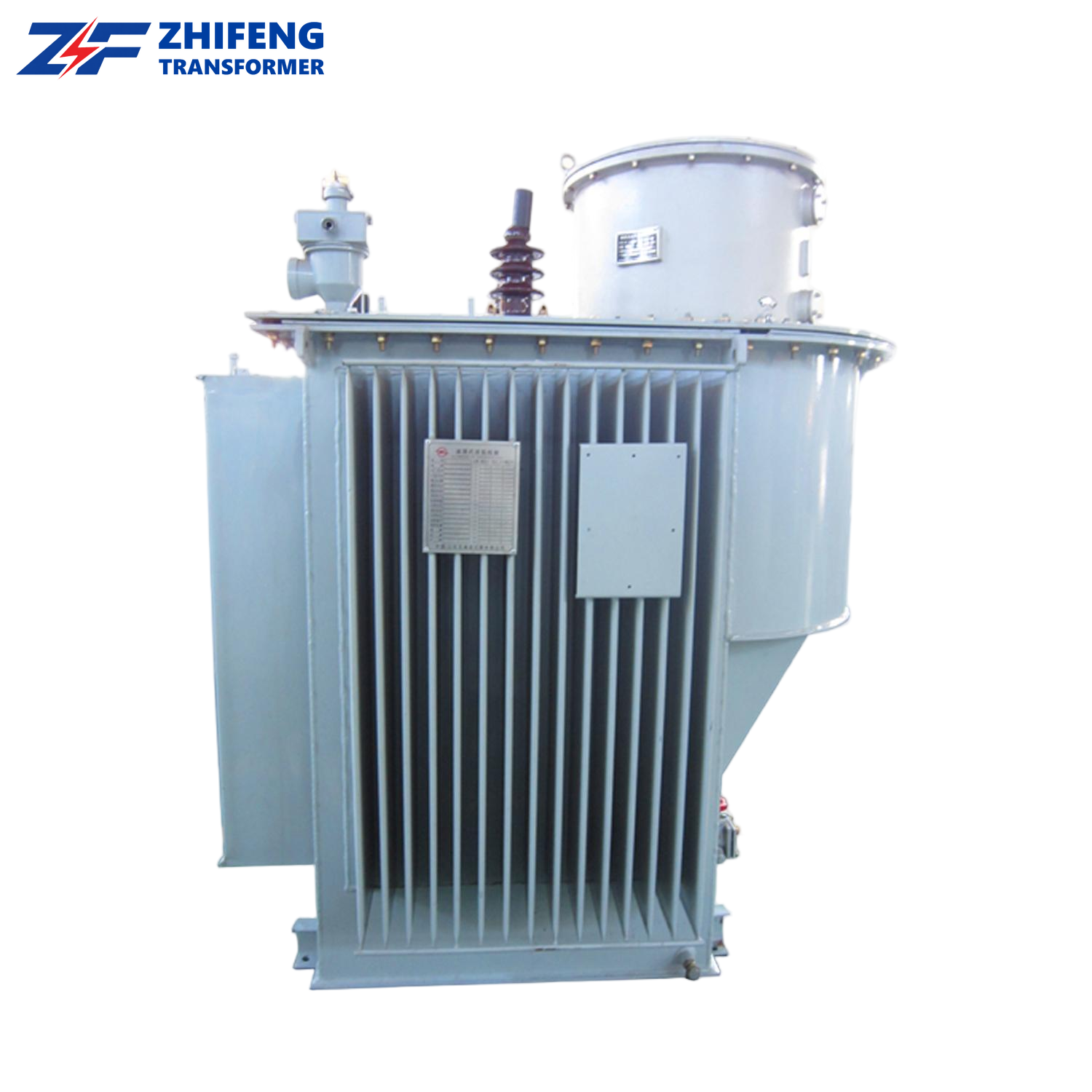

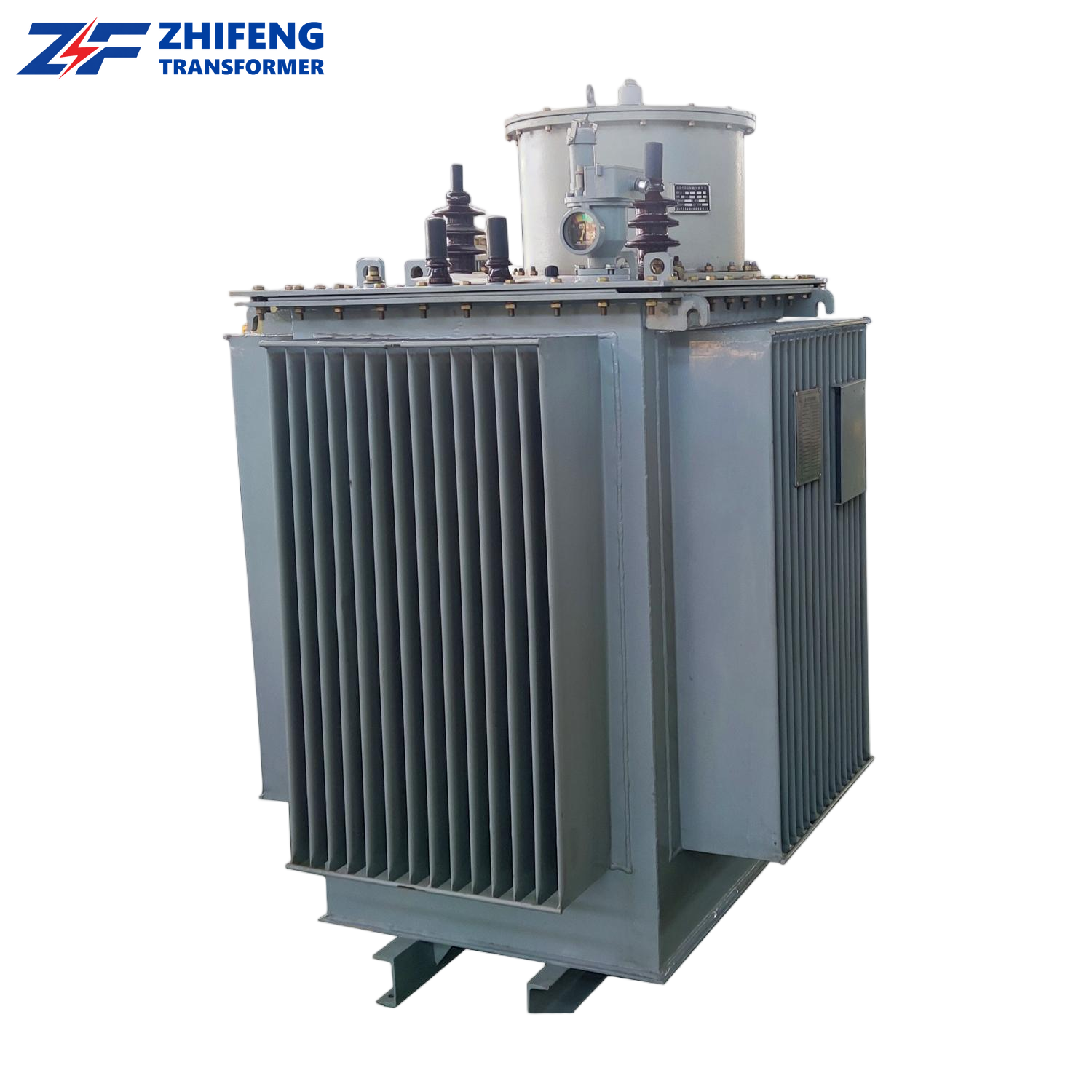

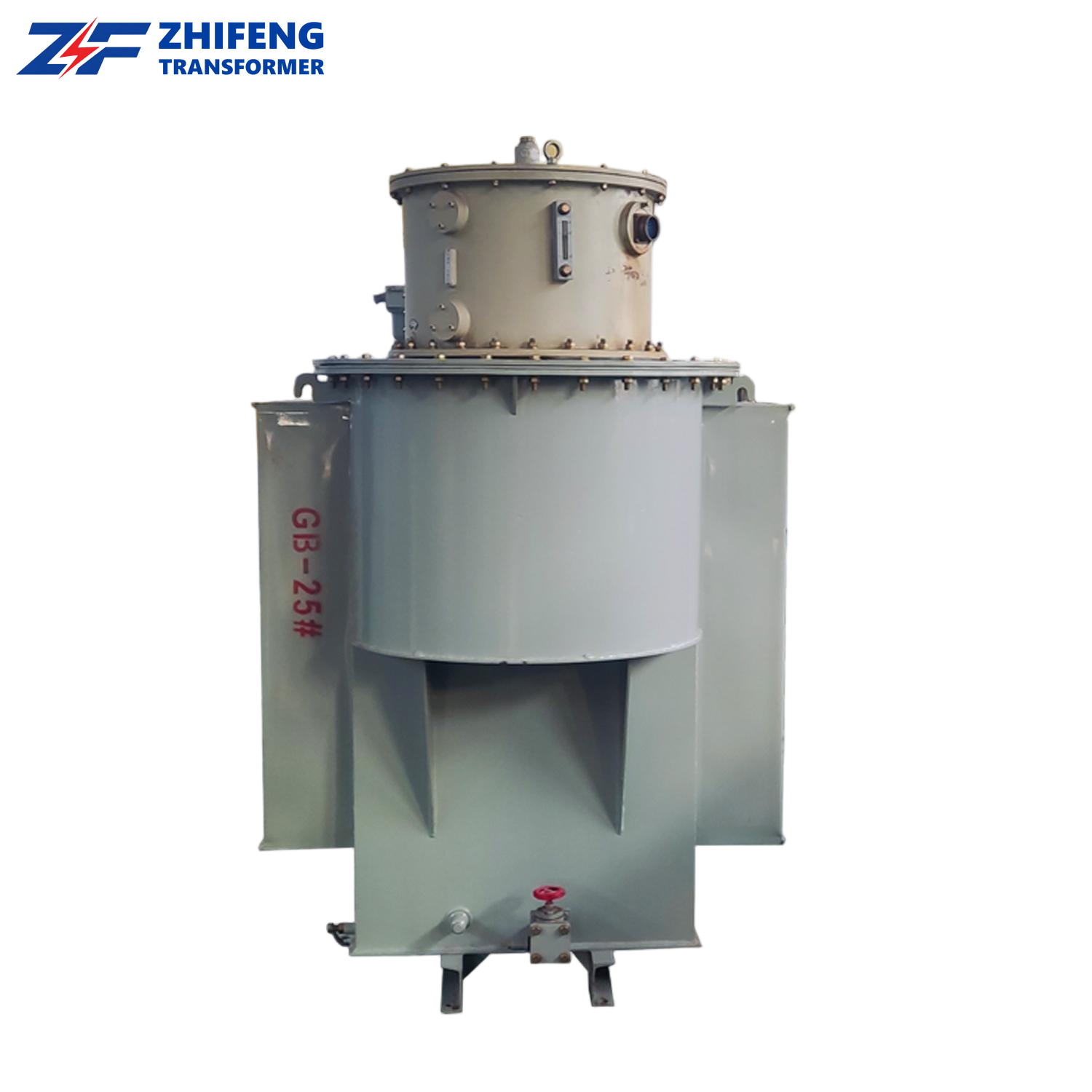

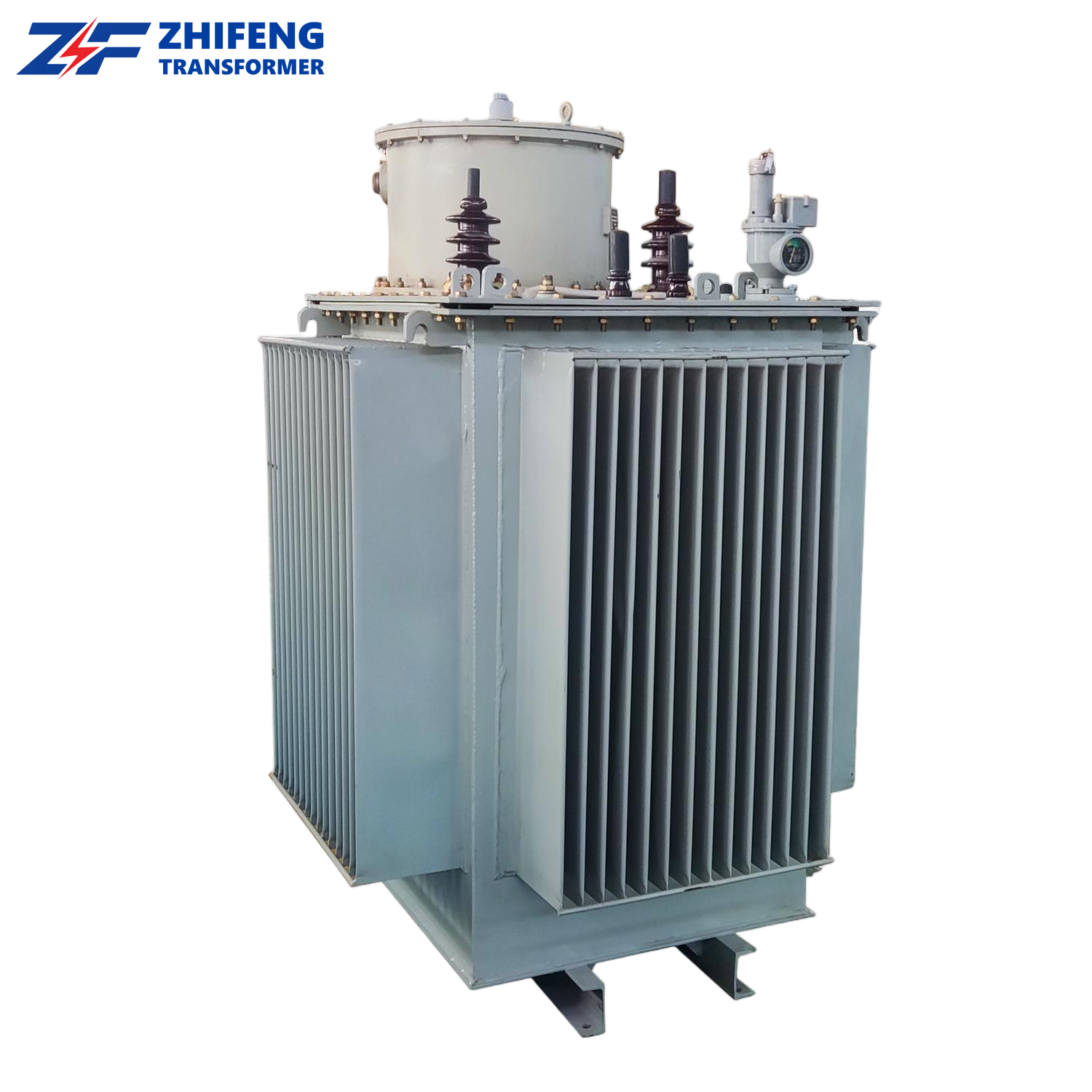

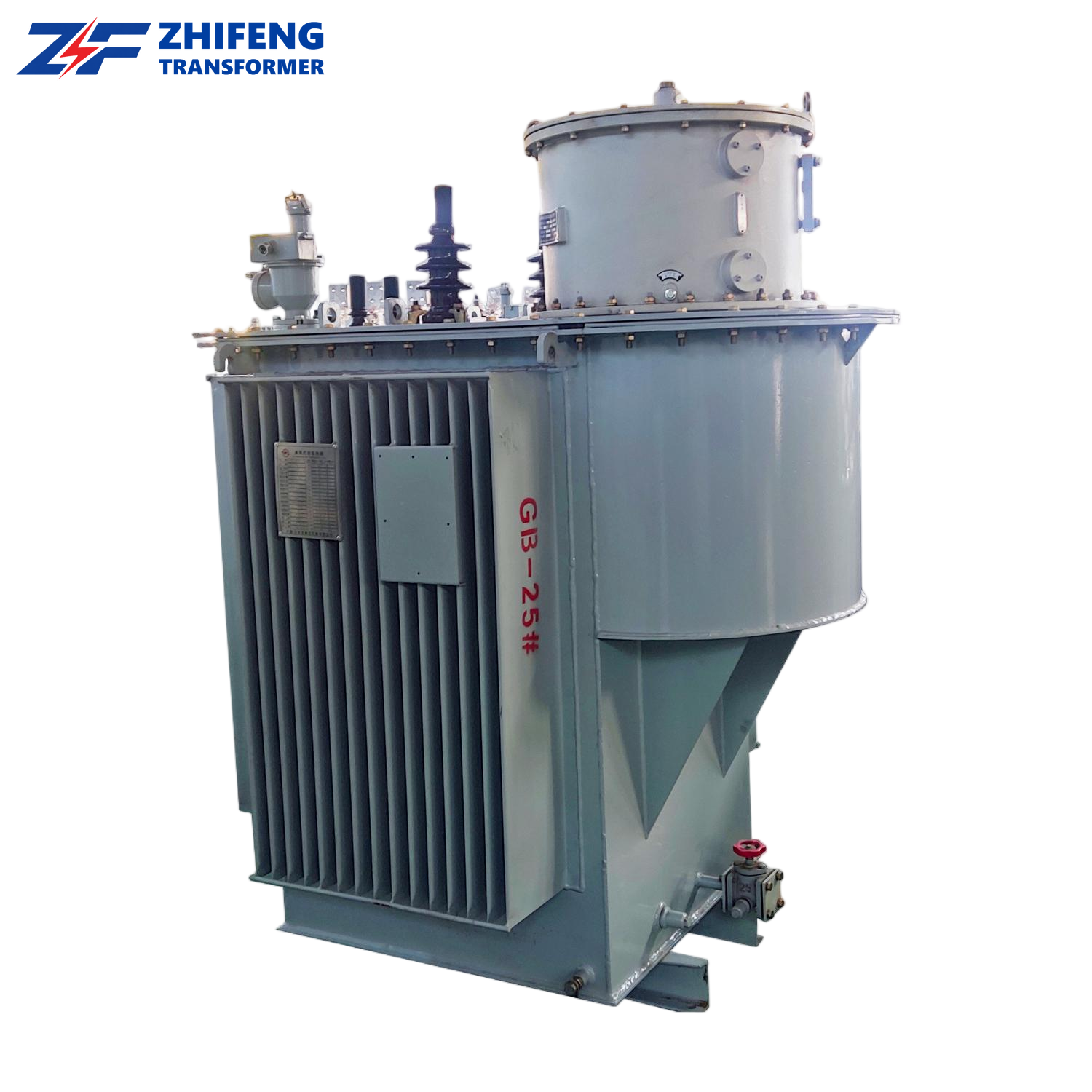

Arc suppression coil transformer

Name: Arc suppression coil transformer
SKU: 0

Arc suppression coil is a single-phase reactor used to compensate the capacitive current generated when the power system fails to the ground. The arc suppression coil is connected between the neutral point of the power transformer or ground transformer and the ground in the three-phase power system.
Enforce standards：GB/T11094.6

Phone：0635-2557656

WhatsApp：+86-15165830797

WhatsApp：+86-17588252991

Email：alice@zftransformer.com

Email：lilei@zftransformer.com

◉ Product Parameters

Technical parameters of 10kV turn suppression coil

Type	Flow range	Gear position	gauge	Body size (length×width×height)(mm)	Body weight (kg)
DCZ-100/10.5	5-17A	7	370×1140	800×1200×1073	600
DCZ-150/10.5	10-25A	15	400×590	840×650×1279	700
DCZ-200/10.5	10-33A	9	400×590	840×650×1279	730
DCZ-250/10.5	10-41A	9	490×670	900×750×1363	820
DCZ-315/10.5	15-52A	15	490×670	900×750×1363	910
DCZ-430/10.5	20-71A	15	400×670	930×750×1413	1020
DCZ-630/10.5	31-104A	19	550×790	1100×850×1348	1600
DCZ-800/10.5	40-132A	25	600×790	1200×850×1500	1950
DCZ-1000/10.5	50-165A	25	600×790	1350×850×1650	2150
