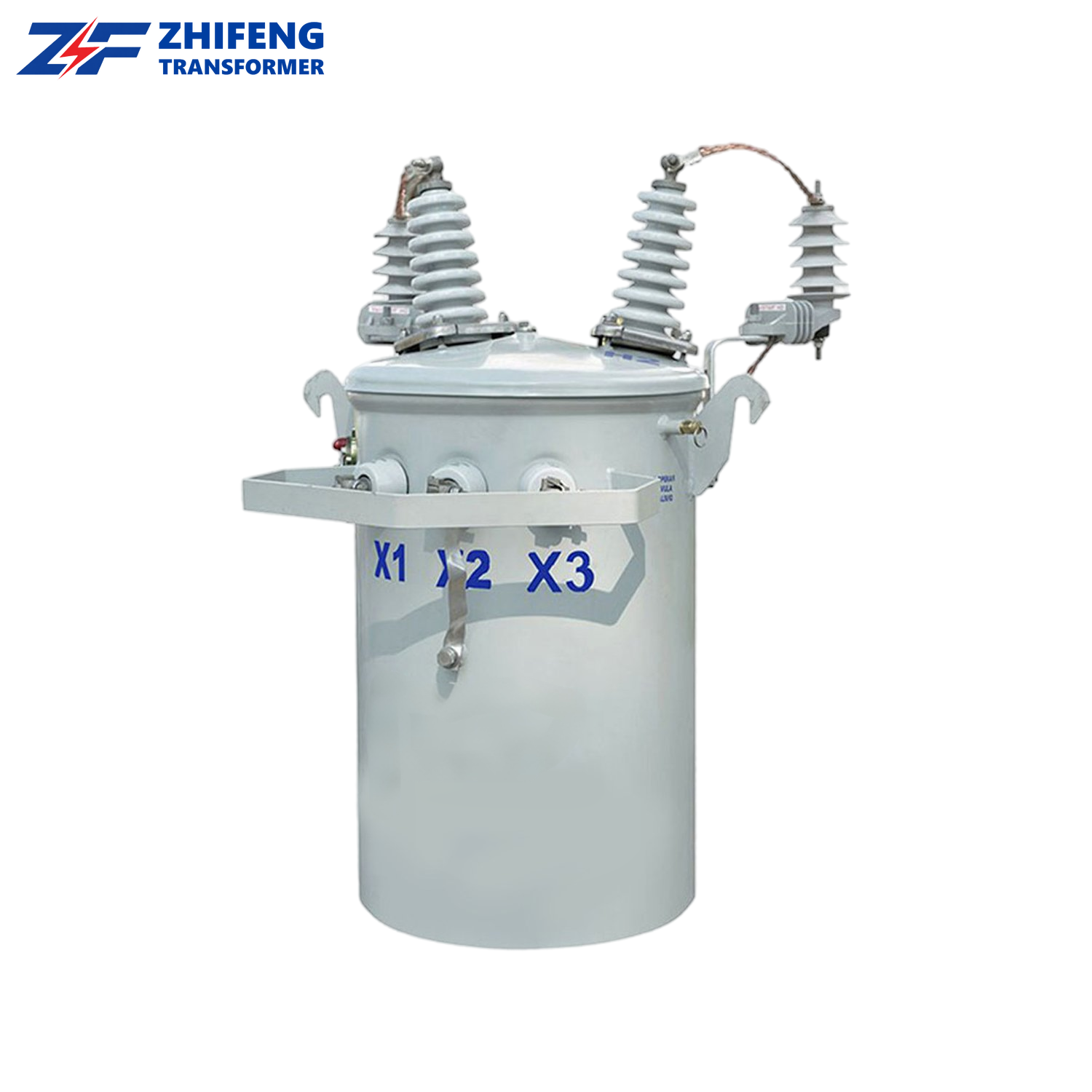

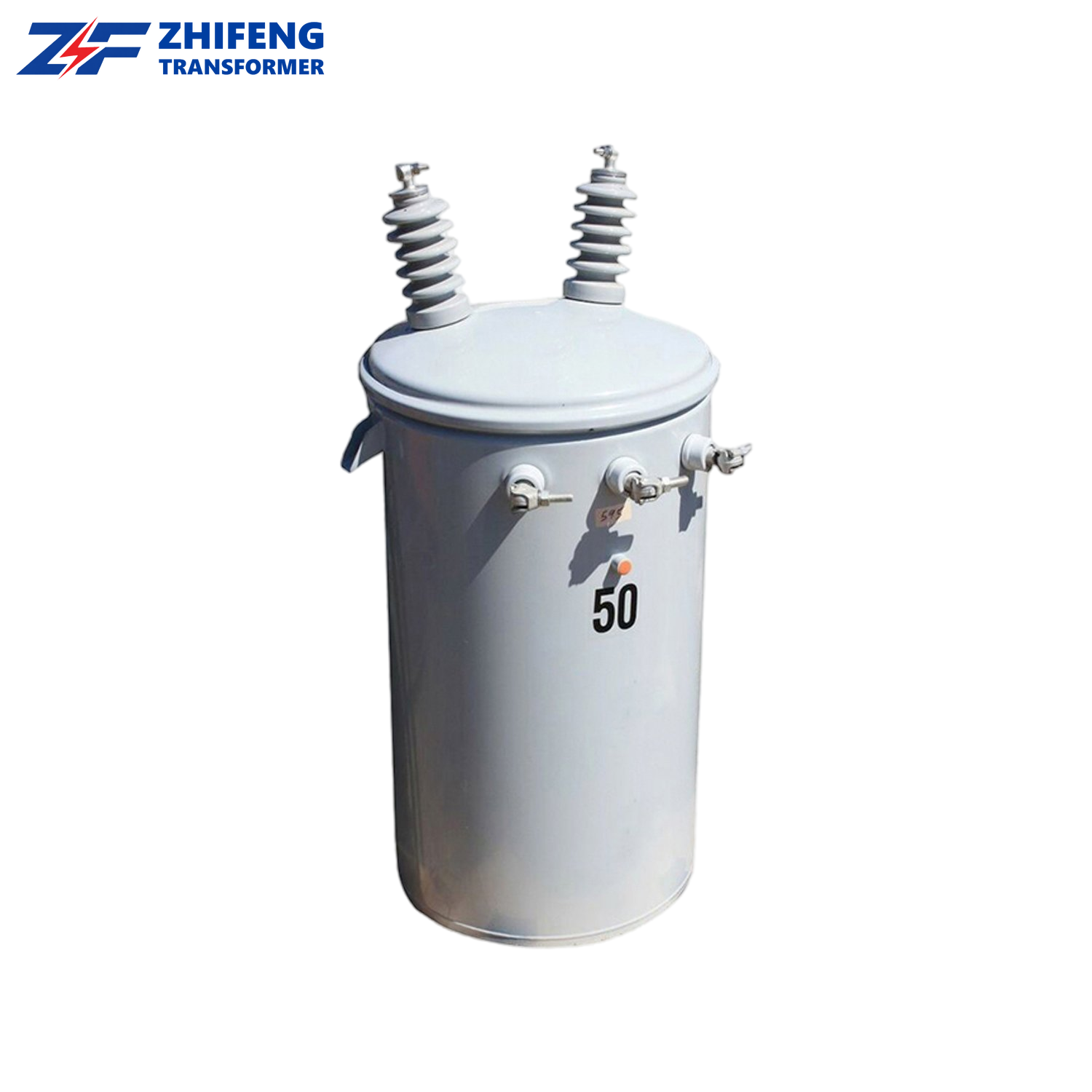

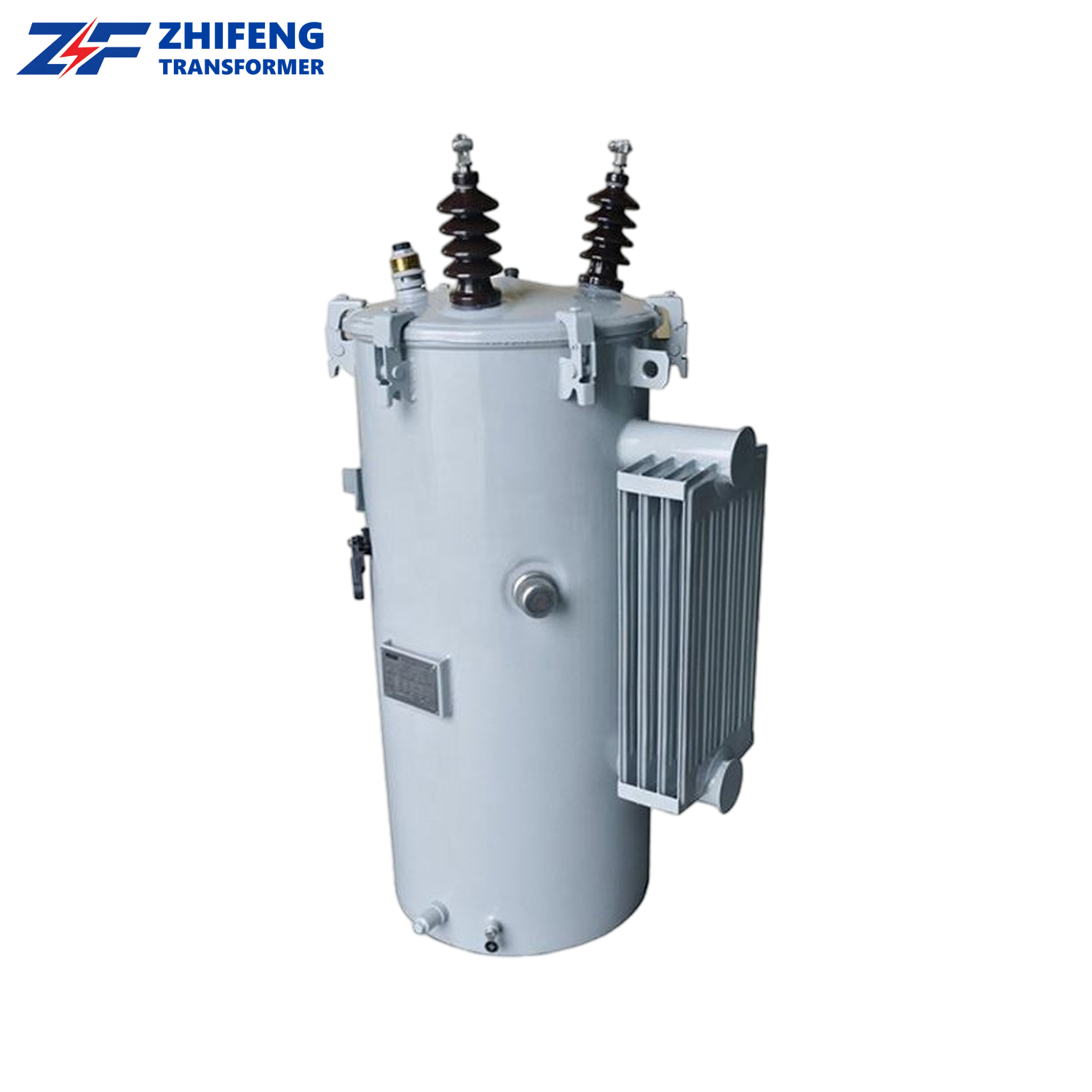

Single-Phase Transformer

◉ Product Parameters

Typical Dimensions and Weights I (C.R.G.O Core)
Rating (kVA)	HV (kV)	Taps (%)	LV (V)	Loss(W)		Dimension(mm)					Weight(kg)
Rating (kVA)	HV (kV)	Taps (%)	LV (V)	No Load	Full Load	A	B	C	D	E	Oil Weight	Total Weight
15	7.2	+1/-3*2.5%	120-240	60	180	1040	530	770	410	286	45	175
25				100	300	1040	530	775	410	286	46	178
37.5				113	413	1100	580	830	460	286	59	247
50				150	500	1180	580	830	460	286	62	294
75				225	750	1290	616	880	496	591	84	372

15	19.92	±2*2.5%	120-240	58	185	1180	580	650	460	286	76	194
25				78	325	1155	580	660	460	286	75	217
37.5				100	480	1250	620	691	496	286	90	270
50				125	660	1235	645	725	524	286	109	308
75				165	900	1300	680	780	560	591	122	394
Typical Dimensions and Weights II(Amorphous Core)
Rating (kVA)	HV (kV)	Taps (%)	LV (V)	Loss(W)		Dimension(mm)					Weight(kg)
Rating (kVA)	HV (kV)	Taps (%)	LV (V)	No Load	Full Load	A	B	C	D	E	Oil Weight	Total Weight
10	7.62	±2*2.5%	120-240	17	110	940	580	650	460	286	62	186
15				22	142	1020	580	650	460	286	64	220
25				33	210	1025	680	755	560	286	99	318
37.5				43	305	1060	730	805	610	286	120	393
50				50	410	1130	730	805	610	286	130	451
75				65	580	1280	780	875	660	591	154	560

10	14.4	±2*2.5%	120-240	12.5	260	1075	480	550	360	286	44	134
15				15.5	395	1085	500	580	380	286	44	150
25				24	500	1085	580	655	460	286	47	215
37.5				32	680	1245	580	655	460	286	69	282
50				38	800	1260	616	691	496	286	96	340
75				60	1030	1330	680	775	560	591	115	428
Note:The above data is only subject to our standard design,special requirement can be customized.
